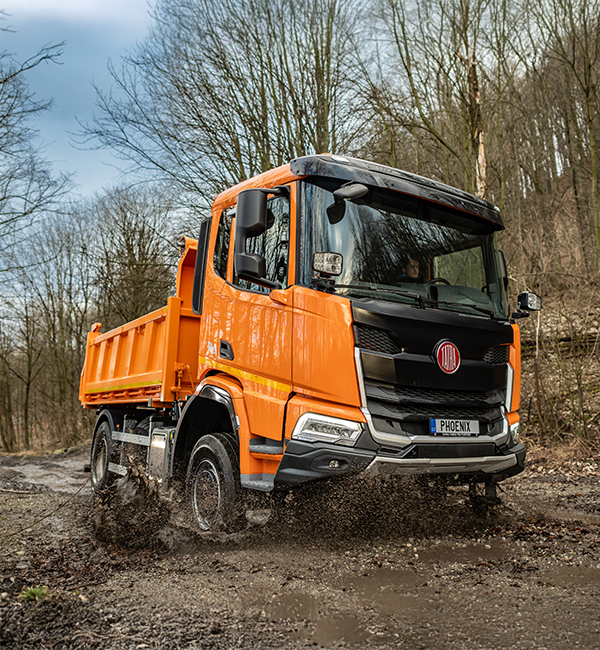

TATRA PHOENIX
Built on the proven Tatra chassis, TATRA PHOENIX is driven through the toughest terrain by powerful, efficient, yet environmentally friendly EURO 6 engine, ZF or Allison Transmissions and a comfortable and modern DAF cabin. Available in Australia in 4×4, 6×6, 8×8, and 10×10 configurations.
| Wheels | Engine | Transmission | GVM(tonne) | Hub Reduction |
| 4×4 | MX11 400HP | ZF Traxon | 20 | No |
| 6×6 | MX13 483HP | ZF Traxon | 30 | No |
| 6×6 | MX13 483HP | ZF Traxon (Allison option) |
35-41** | Yes |
| 8×8 | MX13 483HP | ZF Traxon | 43 | No |
| 8×8 | MX13 483HP/530HP | ZF Traxon (Allison option) |
46-52** | Yes |
| 10×10 | MX13 530HP | ZF Traxon (Allison option) |
62 | Yes |
Customised models can be requested
**Pending tyre configuration

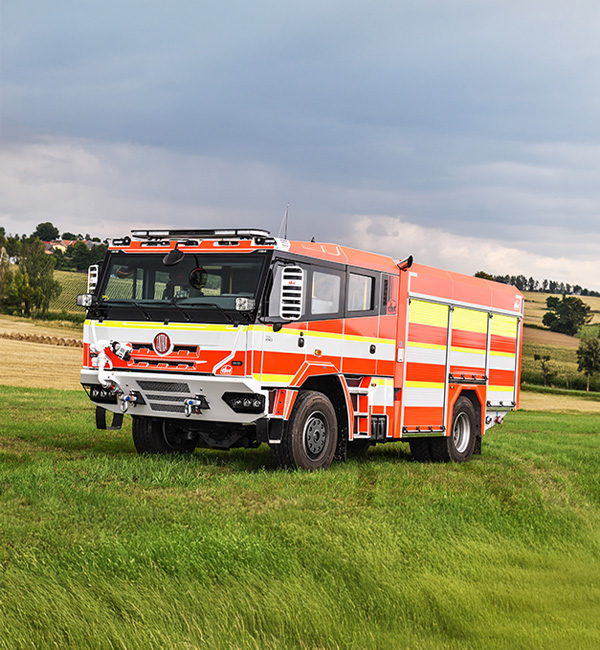

TATRA FORCE
The new generation of TATRA FORCE vehicles are based on the legendary Tatra chassis with a central backbone tube and independent suspension on all axles. The TATRA FORCE is driven through the toughest terrain by powerful and efficient, yet environmentally friendly CUMMINS EURO 6 engines, ZF or Allison Transmissions and a comfortable modern TATRA cabin that builds on the exceptional off-road and on-road handling characteristics of the previous two generations. Available in Australia in 4×4, 6×6 configurations.
| Wheels | Engine | Transmission | GVM(tonne) | Hub Reduction |
| 4×4 | Cummins L96E 400HP |
ZF Traxon (Allison option) |
20 | No |
| 6×6 | Cummins L96E 400HP |
ZF Traxon (Allison option) |
30** | No |
| 6×6 | Cummins L96E 400HP |
ZF Traxon (Allison option) |
26-35*** | Yes |
Customised models can be requested
**Super single tyres
**Pending tyre configuration

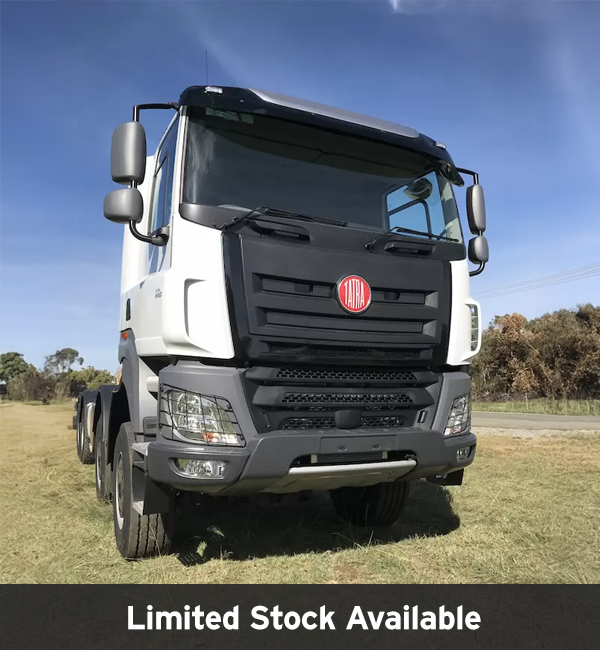

Phoenix (T158)
Built on the proven Tatra chassis, TATRA PHOENIX is driven through the toughest terrain by powerful, efficient, yet environmentally friendly PACCAR MX engines, ZF or Allison Transmissions and a comfortable and modern DAF cabin. Available in Australia in 4×4, 6×6, 8×8, 10×10 and 12×12 configurations.
| Configuration | Model | Engine | Gearbox | GVM | Spec Sheet | Drawing |
| 4×4 | 8PFR23 | Paccar MX300 | ZF Traxon | 20,000kg | (Download Link) | (Download Link) |
| 6×6 | 8PFR33 | Paccar MX355* | ZF Traxon | 30,000kg | (Download Link) | (Download Link) |
| 8×8 | 8PFR43 | Paccar MX355* | ZF Traxon | 41,000kg | (Download Link) | (Download Link) |
| 8×8 | 8PFR46 | Paccar MX355* | ZF Traxon | 46,000kg* | (Contact Us) | (Contact Us) |
| 6×6 | 8PFR34 | Paccar MX355* | Allison 4500 | 35,000kg* | (Download Link) | (Contact Us) |
| 8×8 | 8PFR44 | Paccar MX355* | Allison 4700 | 46,000kg* | (Download Link) | (Download Link) |
| 10×10 | 8PFR56 | Paccar MX355* | Allison 4500 | 62,000kg* | (Download Link) | (Download Link) |
*GVM Upgrade available
Custom design models available on request
6×6, 8×8 & 10×10 Tipper Models Available
