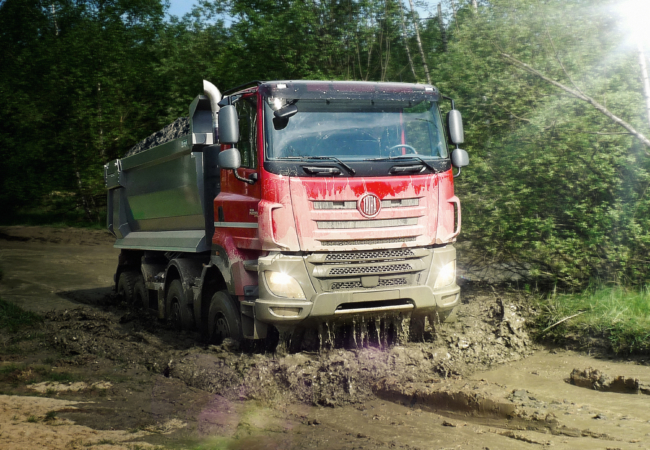

Phoenix (T158)

Built on the proven Tatra chassis, TATRA PHOENIX is driven through the toughest terrain by powerful, efficient, yet environmentally friendly PACCAR MX engines, ZF or Allison Transmissions and a comfortable and modern DAF cabin.  Available in Australia in 4×4, 6×6, 8×8, 10×10 and 12×12 configurations

ConfigurationModelEngineGearboxGVMSpec SheetDrawing
4×48PFR23Paccar MX300ZF Traxon20,000kg(Download Link)(Download Link)
6×68PFR33Paccar MX355*ZF Traxon30,000kg(Download Link)(Download Link)
8×88PFR43Paccar MX355*ZF Traxon41,000kg(Download Link)(Download Link)
10×108PFR53Paccar MX355*ZF Traxon50,000kg(Contact Us)(Contact Us)
6×6 8PFR33Paccar MX355*Allison 450033,000kg (Download Link) (Contact Us)
8×8 8PFR43Paccar MX355*Allison 450046,000kg** (Download Link) (Contact Us)
10×108PFR53Paccar MX355*Allison 450062,000kg** (Download Link) (Contact Us)
10×10 Tipper8PFR53Paccar MX390Allison 470062,000kg** (Download Link) (Contact Us)

*Engine upgrade available to MX390

**GVM Upgrade available

Custom design models available on request

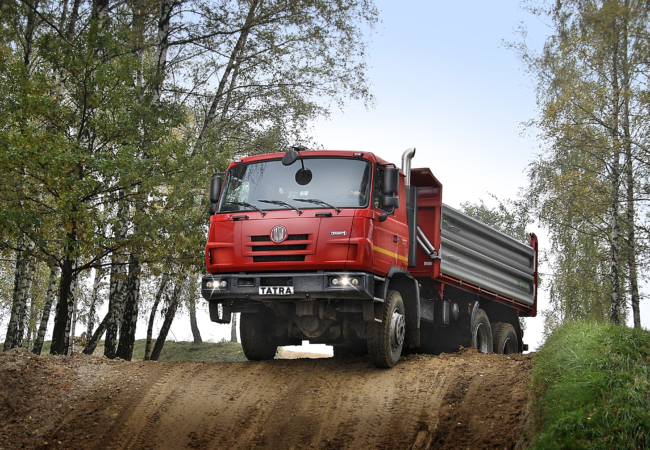

T815-2

Using the Tatra KING FRAME design and suspension, this model offers a robust solution for mining and civil applications, using the powerful Tatra 435HP engine and Allison 4500 transmission. Available in Australia in 4×4, 6×6, 8×8, and 10×10 configurations.

ConfigurationModelEngineGearboxGVMSpec SheetDrawing
4×4222R43/459TatraAllison19,000kg*(download link)(download link)
4×4 Crew Cab232R53/459TatraAllison19,000kg*(download link)(download link)
6×6232R20/459TatraAllison33,000kg*(download link)(download link)
8×8232R80/449TatraAllison43,000kg*(download link)(download link)
10×10232R60/449TatraAllison50,500kg*(download link)(download link)

*GVM Upgrade available

*Custom design models available on request

T815-7

Utilising the same engine, transmission and suspension design as the T815-2, this model offers the additional feature of a low profile certified ROPS/FOPS cabin for additional safety or where access is limited. Available in Australia in 4×4, 6×6, 8×8, and 10×10 configurations.

ConfigurationModelEngineGearboxGVMSpec SheetDrawing
4×4732R53/41ATatraAllison19,000kg*(download link)(download link)
6×6732R33/412TatraAllison33,000kg*(Contact Us)(Contact Us)
8×8732R90/447TatraAllison44,000kg*(download link)(download link)
10×10732R70/447TatraAllison50,500kg*(download link)(download link)

*GVM Upgrade available

*Custom design models available on request
